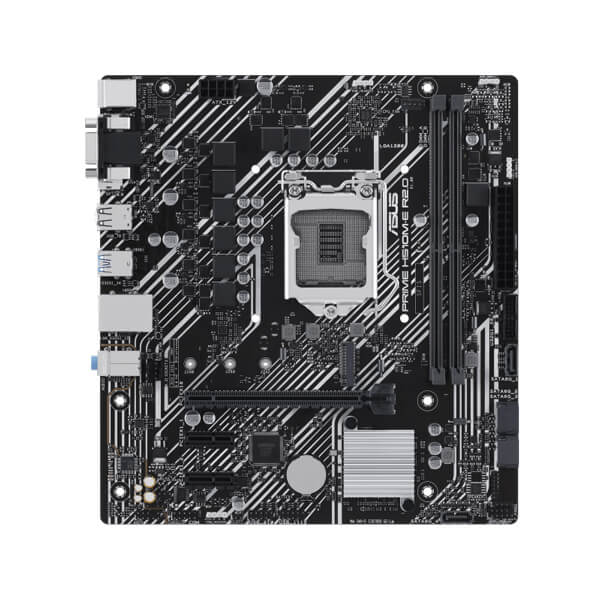

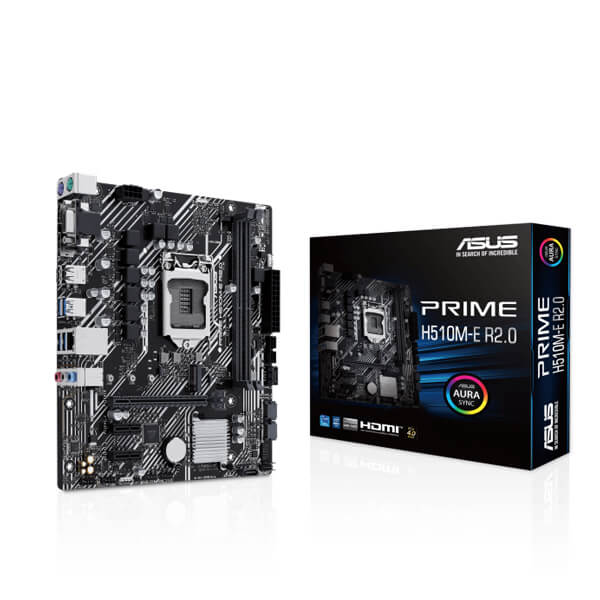

Asus Prime H510M-E R2.0 M-ATX Motherboard
-52%
Original price was: ₹13,000.00.₹6,200.00Current price is: ₹6,200.00.
- Brand: ASUS
- Product Code: PRIME-H510M-E-R2-0
Availability:1 in stock
Add to cart
Buy Now
- Features:
- Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- 5X Protection III: Multiple hardware safeguards for all-round protection
COOLING
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
Specifications:
Model PRIME H510M-E R2.0 CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors*
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0Chipset Intel® H470 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
*11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.Graphics 1 x DisplayPort 1.4
1 x VGA
1 x HDMITM 2.1Expansion Slots Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
– Intel® 11th Gen processors support PCIe 4.0 x16
– Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H470 Chipset
2 x PCIe 3.0 x1 slotsStorage Total supports 1 x M.2 slot and 4 x SATA6Gb/s ports
Intel® H470 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s portsEthernet 1 x Realtek 1Gb Ethernet USB Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 portsAudio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors

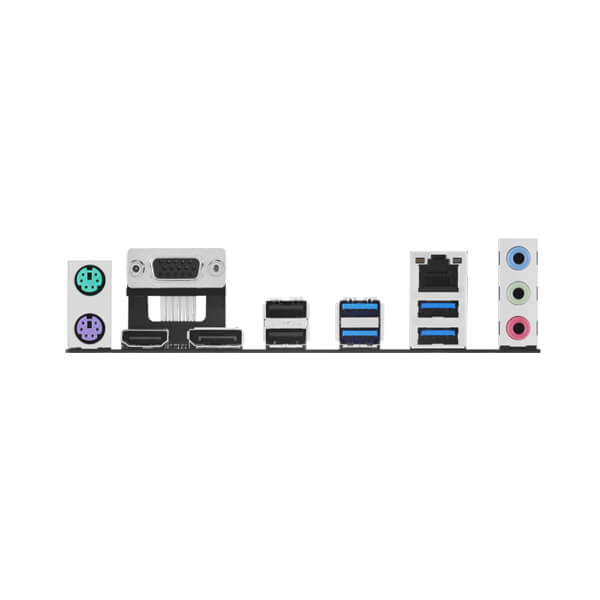

– Dedicated audio PCB layersBack Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) portInternal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel headerSpecial Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
AURA Sync
– AURA RGB headers
– Addressable Gen 2 RGB headersSoftware Features ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS
EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ ModeBIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Documentation
1 x User guideOperating System Windows® 10 64-bit Form Factor mATX Form Factor
8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )Warranty 3 Years
